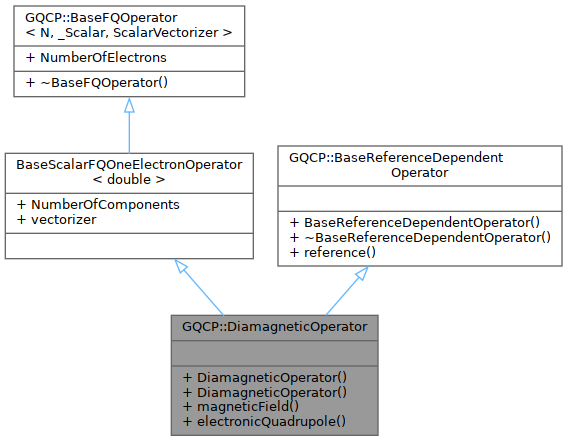

Inheritance diagram for GQCP::DiamagneticOperator:

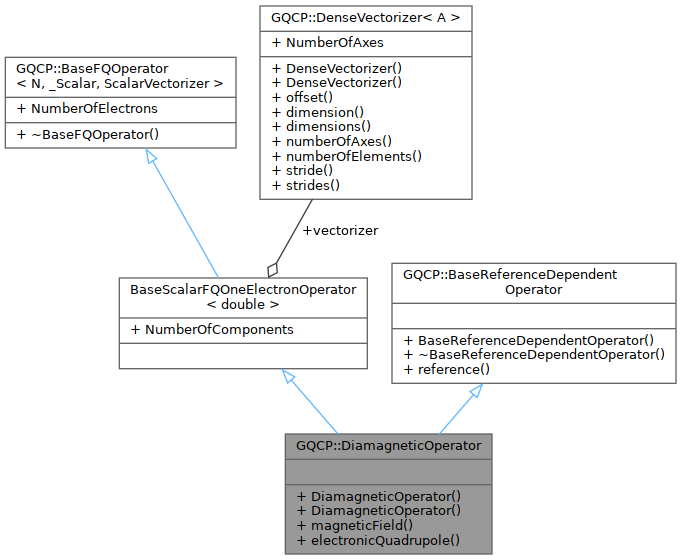

Collaboration diagram for GQCP::DiamagneticOperator:

Public Member Functions
	DiamagneticOperator (const HomogeneousMagneticField &B, const Vector< double, 3 > &reference)

	DiamagneticOperator (const HomogeneousMagneticField &B)

const HomogeneousMagneticField &	magneticField () const

ElectronicQuadrupoleOperator	electronicQuadrupole () const

Public Member Functions inherited from GQCP::BaseFQOperator< N, _Scalar, ScalarVectorizer >
virtual	~BaseFQOperator ()

Public Member Functions inherited from GQCP::BaseReferenceDependentOperator
	BaseReferenceDependentOperator (const Vector< double, 3 > &reference=Vector< double, 3 >::Zero())

virtual	~BaseReferenceDependentOperator ()=0

const Vector< double, 3 > &	reference () const

Additional Inherited Members
Public Types inherited from GQCP::BaseFQOperator< N, _Scalar, ScalarVectorizer >
using	Scalar = _Scalar

using	Vectorizer = ScalarVectorizer

Static Public Attributes inherited from GQCP::BaseScalarFQOperator< N, _Scalar >
static constexpr size_t	NumberOfComponents = 1

static const ScalarVectorizer	vectorizer {}

Static Public Attributes inherited from GQCP::BaseFQOperator< N, _Scalar, ScalarVectorizer >
static constexpr auto	NumberOfElectrons

Detailed Description

The diagmagnetic operator, i.e. the part of the scalar kinetic energy operator that is quadratric in the magnetic field.

Constructor & Destructor Documentation

GQCP::DiamagneticOperator::DiamagneticOperator	(	const HomogeneousMagneticField &	B,
		const Vector< double, 3 > &	reference
	)

Construct a DiamagneticOperator from its underlying homogeneous magnetic field and a reference point.

Parameters

B	The external, homogeneous magnetic field.
reference	The reference point about which the diamagnetic operator is calculated.

GQCP::DiamagneticOperator::DiamagneticOperator ( const HomogeneousMagneticField & B )

Construct a DiamagneticOperator from its underlying homogeneous magnetic field.

Parameters

B	The external, homogeneous magnetic field.

Note: The reference point is chosen to be the gauge origin of the magnetic field.

ElectronicQuadrupoleOperator GQCP::DiamagneticOperator::electronicQuadrupole ( ) const

inline

Returns: The electronic quadrupole operator that is related to this diamagnetic operator.

const HomogeneousMagneticField & GQCP::DiamagneticOperator::magneticField ( ) const

inline

The documentation for this class was generated from the following files:
